Super Directional Loudspeaker

 PROPA-U200 Outdoor

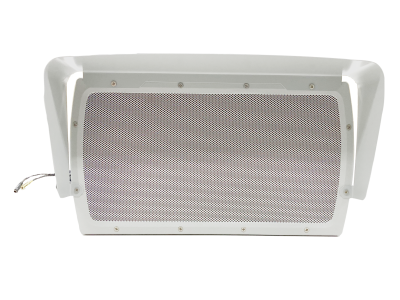

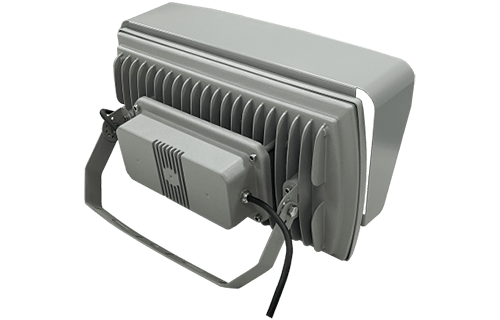

Directional Loudspeaker PROPA-U200 Outdoor

  • The sound is clean and clear.

  • Built-in amplifier.

  • Waterproof (IP43), suitable for outdoor use.

  • Suitable for outdoor noisy places.

PROPA-U200 Outdoor specifications Catalog Download
Max. SPL 110dB@1m
Frequency Response 100Hz ~ 5kHz(-10dB)
Directivity ±10°(1kHz, -10dB)
Power 18VDC(40W)
Size/Weight 440×240×200mm / 3.6kg
Input Method Audio stereo jack(3.5Ø) 0.9Vpeak
Wall Mount Up/Down:±90°
Additional Options Network Communication Module Audio Control Program

Add network communication module

  • The network omnidirectional speaker is a PROPA-U200 Outdoor speaker with an additional network communication module. Therefore, it can be used by connecting a LAN communication cable and power supply.

  • It has a built-in audio control program that works with sensors to broadcast when someone is detected, play audio from the central control room, or do live mic broadcasting.

  • Play audio when people are detected

  • If no sound is detected, the audio will stop after 10 to 30 seconds (adjustable during initial setup).

  • Operating time can be set (operates only at desired times)

  • Repeat one song / Repeat all songs

  • Sequential playback

  • Supports MP3 and wave files

  • Various sensor support

  • Central broadcasting via network

  • Music playback broadcast / Live microphone broadcast

  • Music management via network

  • Managing music playback by day of the week

  • Sensor deactivation function

Main Features of Super Directional Loudspeaker

Test of the Super Directional Loudspeaker

  • Test report (NSSC-TR-16-0054), Next Generation Sound Supporting Center

  • Max. SPL : 110dB

  • Frequency range : 100Hz~5kHz

How to use a Directional Loudspeaker
