Acoustic Hailing Device
PROPA-500P

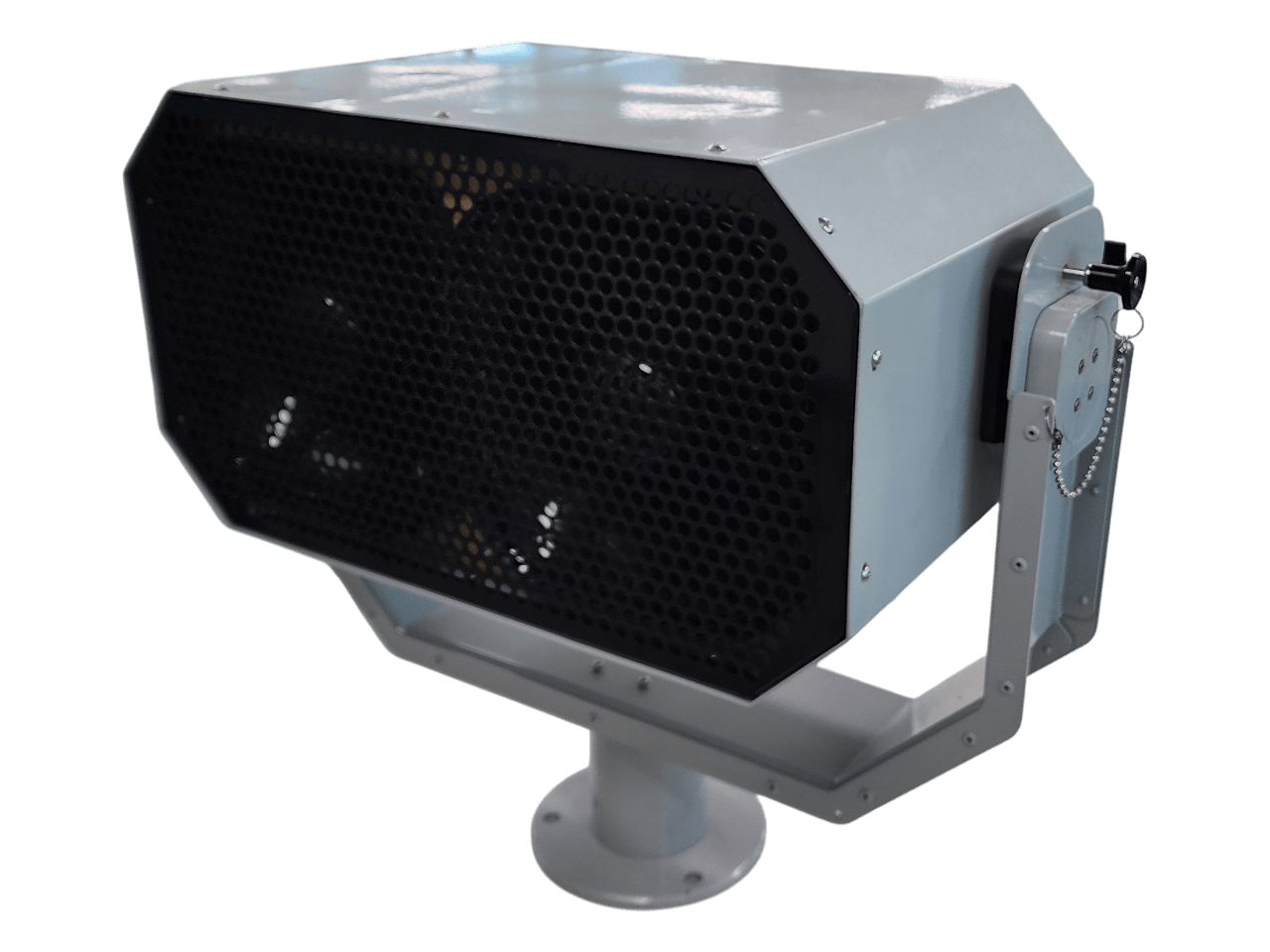

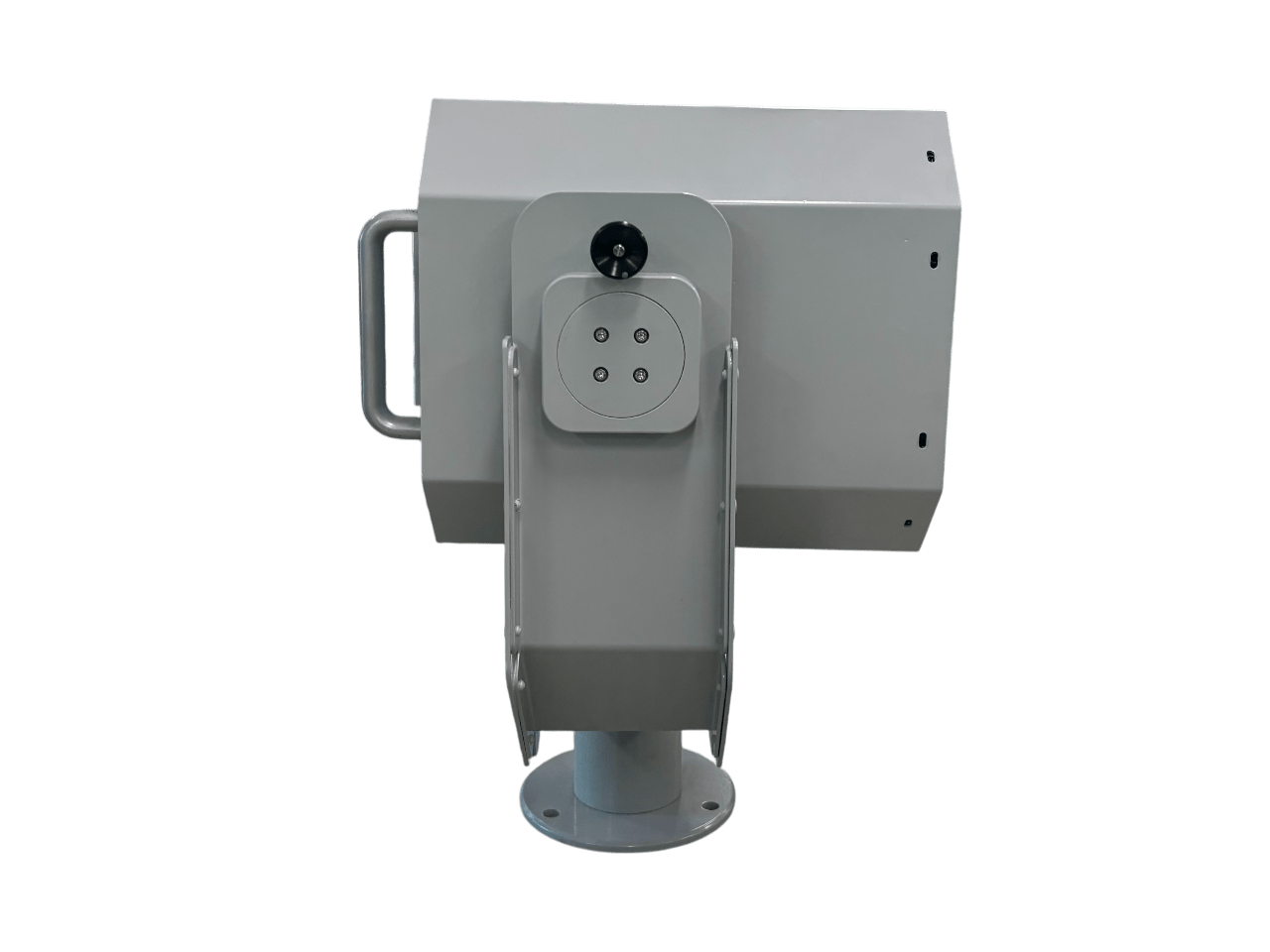

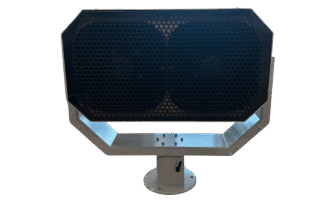

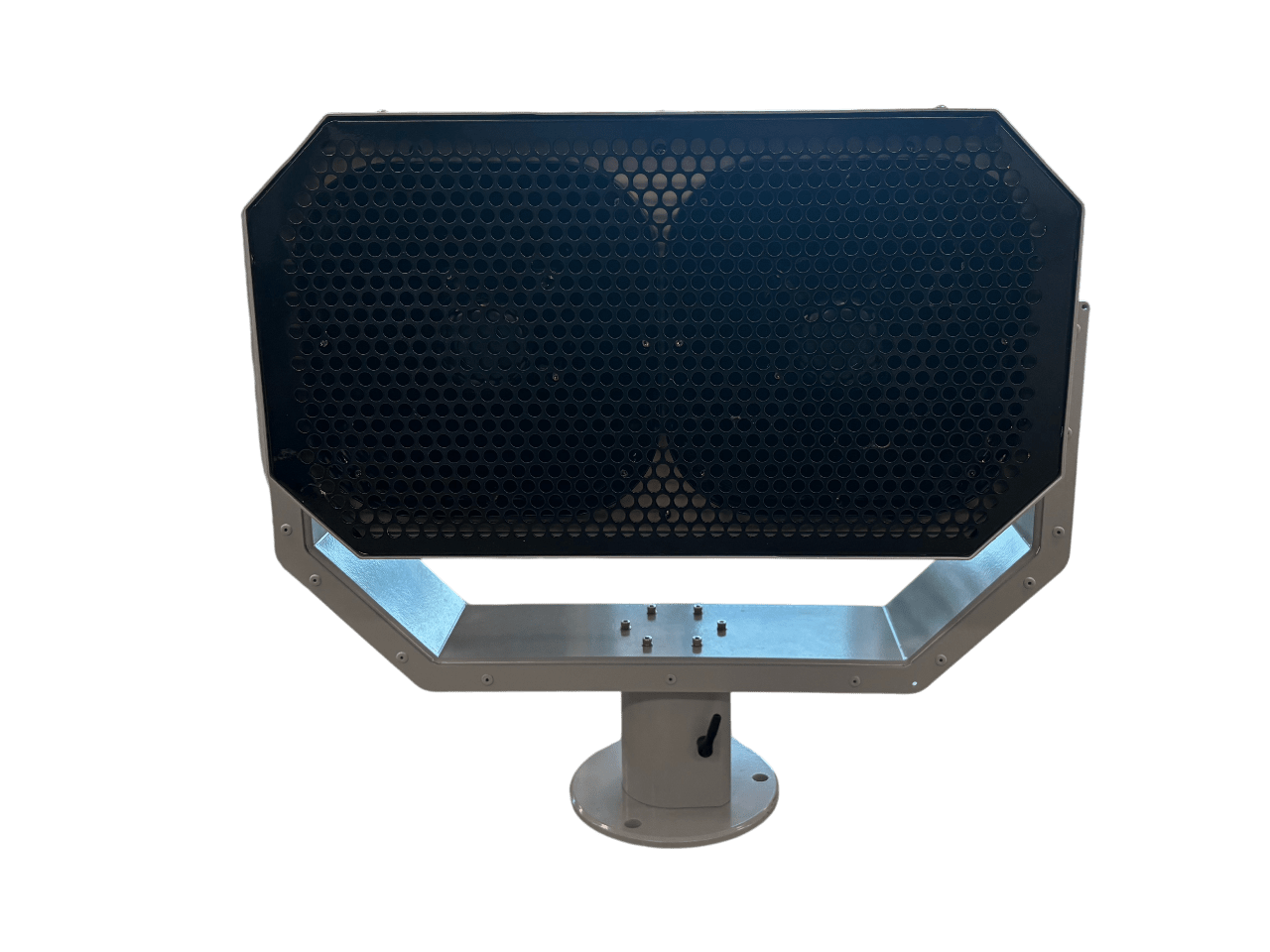

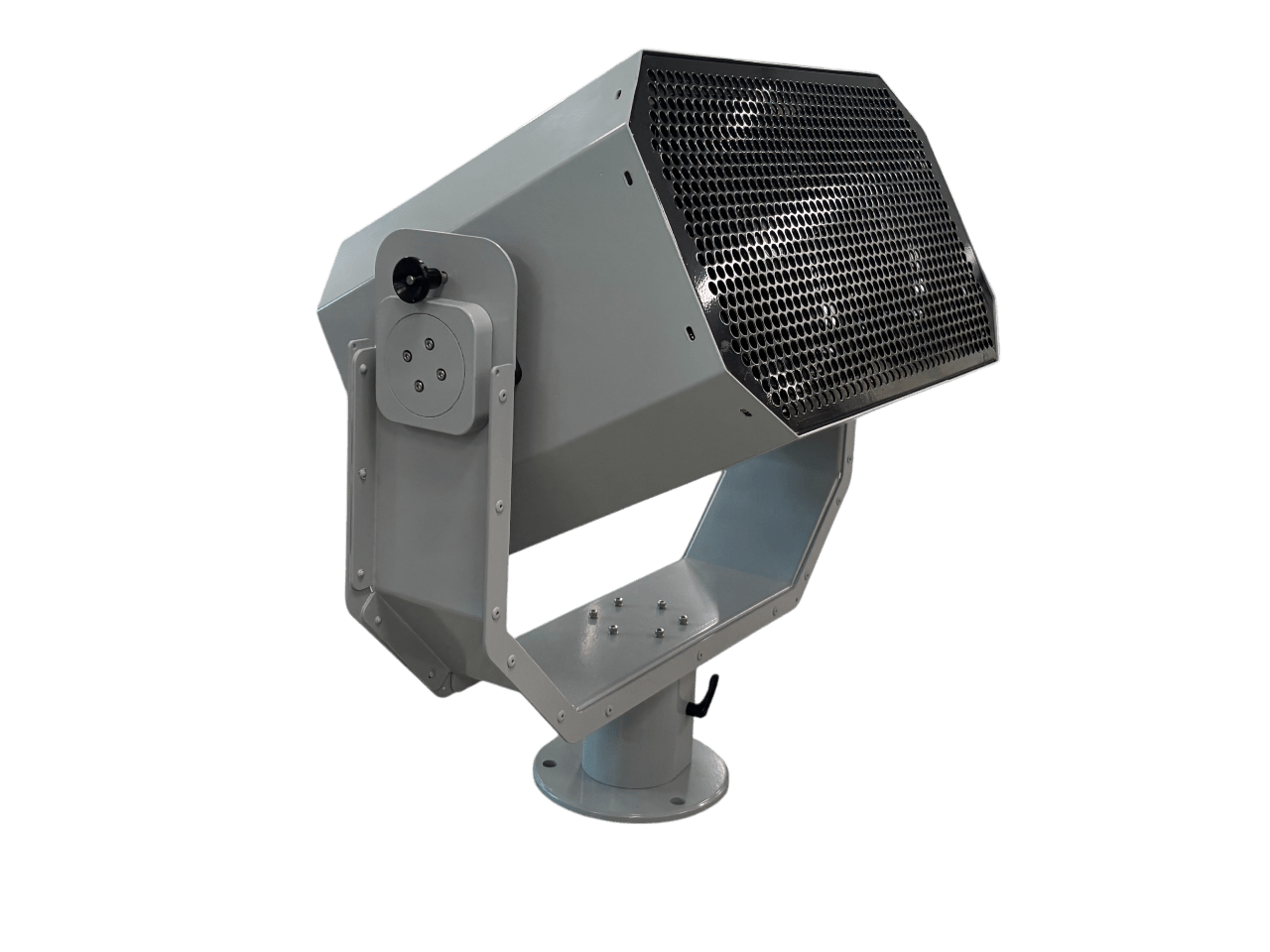

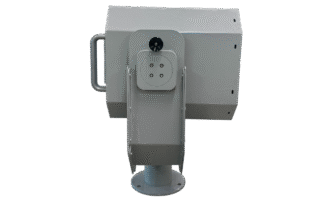

Acoustic Hailing Device PROPA-500P
| PROPA-500P specifications | Catalog Download |
|---|---|
| Max. SPL | 153dBA(Peak)(@1m Front) |
| Directivity | ±15° (2kHz Sine, -3dB) |
| Frequency Response | 500Hz~5KHz |
| Range | 1.7km(78dB), 1km(82dB) |
| Weight | 25kg |
| Power Input | 100∼230VAC or 24VDC |
| Power Consumption | Up to 1 kW |
| Operating temperature | -30°C ∼ +60°C |

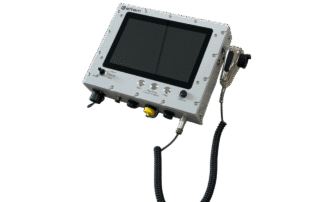

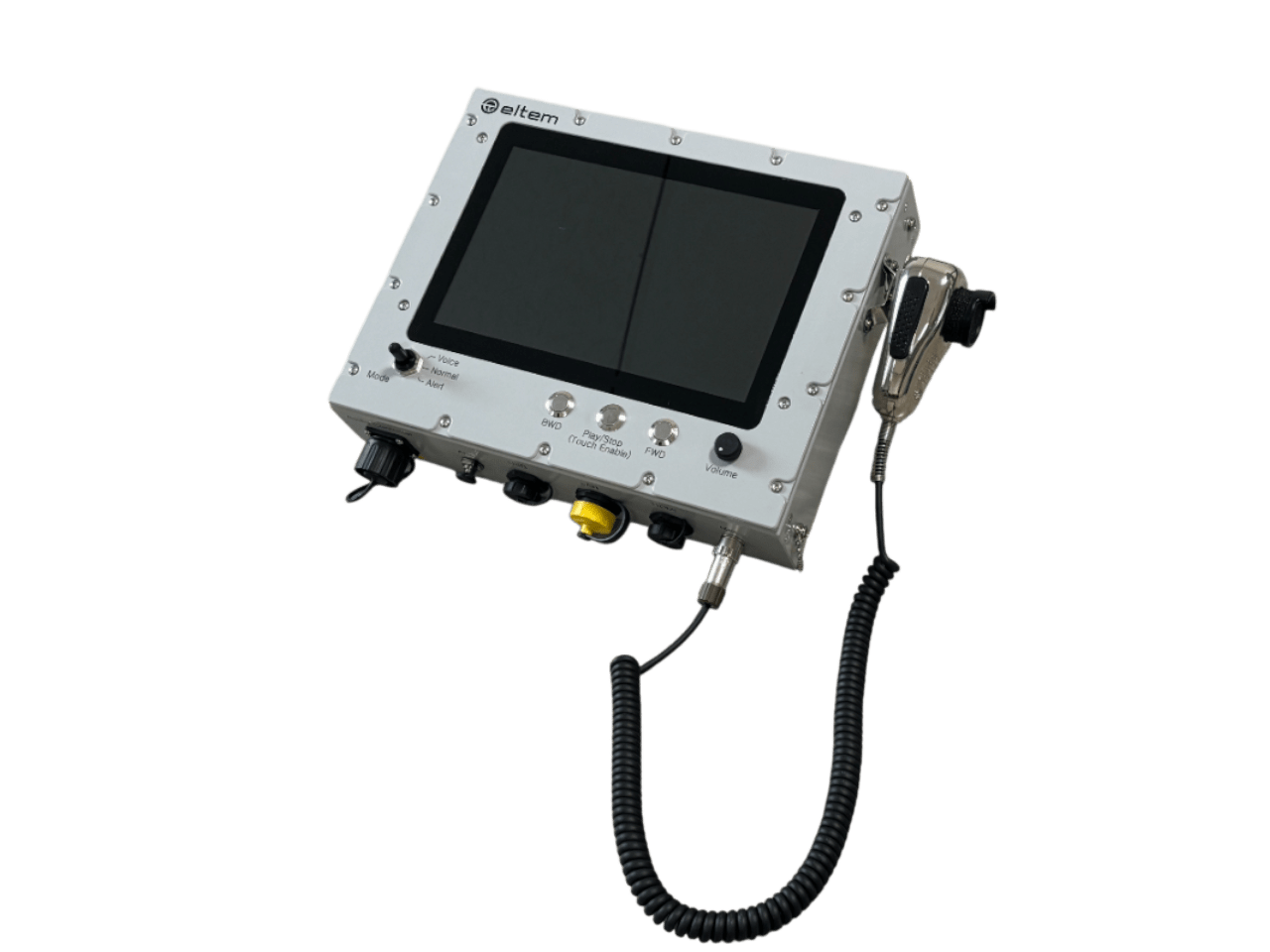

| Audio Controller | Copy from USB memory MP3 file Playback Character LCD(Backlight) – Sunshine Readable Handheld dynamic microphone |
| ETC | Can limit Max. SPL for hearing protection as customer’s request. Embedded AMP, Audio |

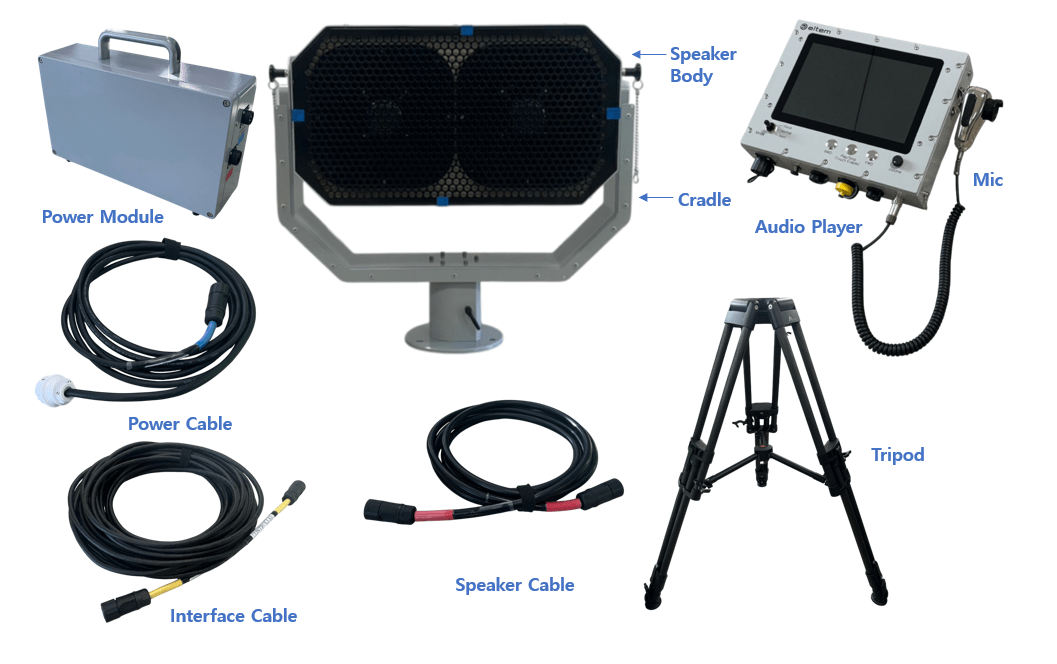

| Basic Components |
|---|

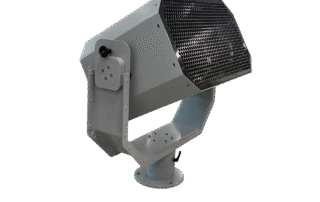

| · Speaker Body : 1ea |
| · Audio player : 1ea |
| · Mic : 1ea |
| · Power supply : 1ea |
| Power Cable and Interface Cable : each 1ea |
| 상단의 내용을 참고해주세요. |
| Additional Components |
|---|
| · Cradle for Tripod : 1ea |
| · Tripod : 1ea |
| · Headphone : 1ea |
| · Sound optimization software |
| · Extra driver |
| · Carrier case |
Main Features of Acoustic Hailing Device
- Since it broadcasts with directivity and high power, it can transmit highly clear sounds to a long distant (1 ~ 3km).
- With maximum output above 142dB, it can get over the noise of the surrounding area and can provide large and clear communication and warning signals to the inside of vehicles, ships or buildings, overcoming the limitation of the existing broadcasting system (P.A. System).
- It is possible to broadcast using a sound source and a microphone.
- Since it broadcasts with directivity and high power, it can transmit highly clear sounds to a long distant (1 ~ 3km).
- With maximum output above 142dB, it can get over the noise of the surrounding area and can provide large and clear communication and warning signals to the inside of vehicles, ships or buildings, overcoming the limitation of the existing broadcasting system (P.A. System).
- It is possible to broadcast using a sound source and a microphone.
Sound Pressure Level vs Distance
– 30~50dB
Quiet library, noise in the woods, bedroom
– 50~60dB
General office noise
– 60~70dB
Noise on large ship deck
– 70~90dB
Small ship engine noise (above deck)
– 80~100dB
Noisy construction site, road noise
– 120~130dB
Jet noise (100m)
– 130dB
Above, we started to feel pain
– 160dB
Rocket firing noise
– Theoretically, We can hear sounds at 88dB at 500m, 82dB at 1km, and 68dB at 5km
| – 30~50dB | Quiet library, noise in the woods, bedroom |
| – 50~60dB | General office noise |
| – 60~70dB | Noise on large ship deck |
| – 70~90dB | Small ship engine noise (above deck) |
| – 80~100dB | Noisy construction site, road noise |
| – 120~130dB | Jet noise (100m) |
| – 130dB | Above, we started to feel pain |
| – 160dB | Rocket firing noise |
PROPA-500P Environmental Certifications
- Random Vibration : MIL-STD 810F, Method 514.4
- Low Temperature Operation : MIL-STD-810F, Method 502.4
- High Temperature Operation : MIL-STD-810F, Method 501.4
- Shock : MIL-STD-810F
- Shipboard Shock : MIL-STD-910D, Class I
- Shipboard Vibration : MIL-STD-167-1A
- Operating Humidity : MIL-STD-810F, Method 507.4
- Salt Fog : MIL-STD-810F, Method 509.4
- Safety Standard : MIL-STD-1474D
- EMC Standard : FCC Part 15 Class A Radiated and Conducted Emissions
- Water and Dust Protection : IP66
