LOMAH L60
Location Of Miss and Hit System

LOMAH(Location Of Miss and Hit System)
LOMAH(Location Of Miss and Hit System)

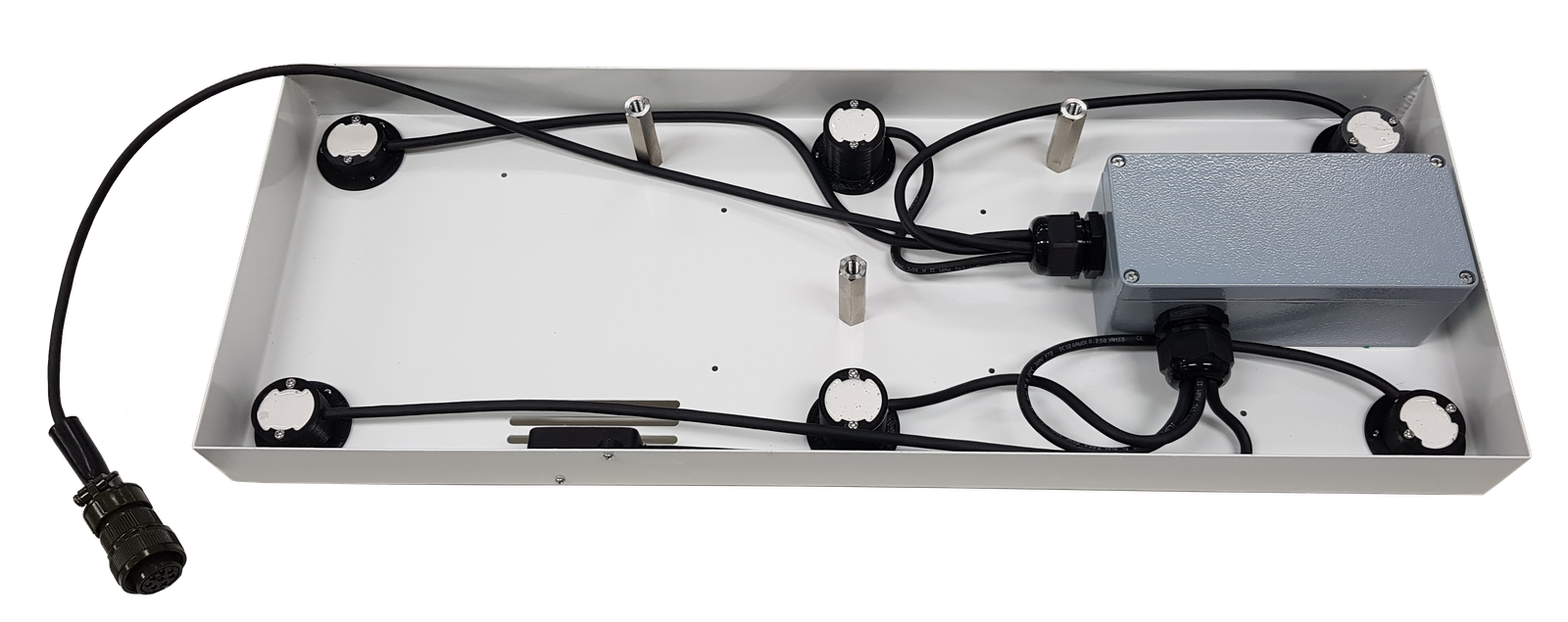

LOMAH is a system that estimates the point of impact of a bullet. This is a device that uses multiple ultrasonic sensors to detect the sonic boom emitted by a bullet and estimates the location through the delay time difference between the sonic boom reaching the sensor. If the estimated location is within the target’s coordinates, it is judged as a Hit, and if it is outside the target’s coordinates, it is judged as a Miss.
| LOMAH L60 specifications | Catalog Download |
|---|---|
| Number of Sensors | 4 or 6 (Ultrasonic Transducers) |
| Algorithm | TDOA |
| Estimated value | Impact point (horizontal x vertical), bullet velocity |
| Estimating Time | 50ms |
| Estimating Resolution | 10~16mm |
| Power | 12VDC |
| Size/Weight | 642×232×101mm / 3.6kg |
| Interface | 100Mbps Ethernet |
