Elmo Motors, Elmo I/F BD Development Environment Construction/Application Program Development/Interface Board Development

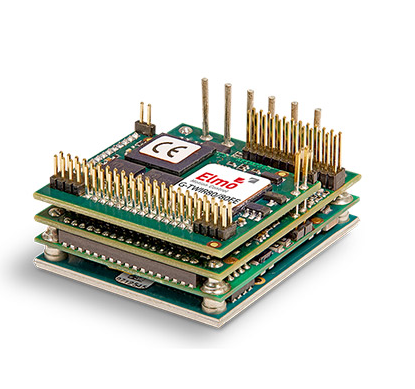

Elmo Motors Servo Drive Gold Twitter

Elmo Gold Twitter servo motors are among the smallest and most powerful servo drives in the world.

With precise position control and fast response speeds, they are optimized for robots and automated equipment.

Their ultra-compact form factor supports various communications such as EtherCAT and CAN, enabling flexible system configuration.

  • Compact but powerful servo motor

  • Products optimized for high-speed, high-precision control

  • Suitable for industrial robots and automation equipment

  • Supports various communications such as EtherCAT and CAN

  • Powerful drive with up to 80A output

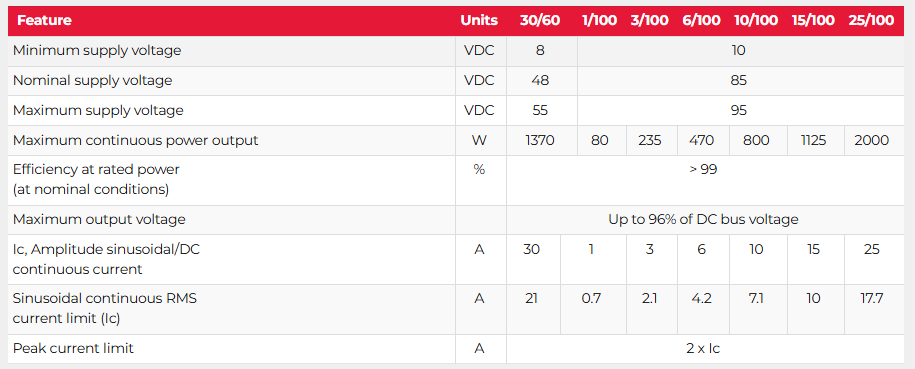

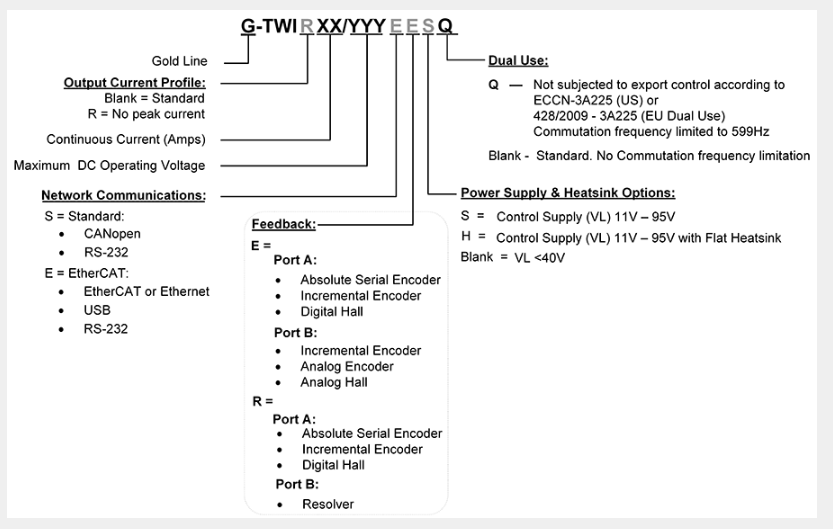

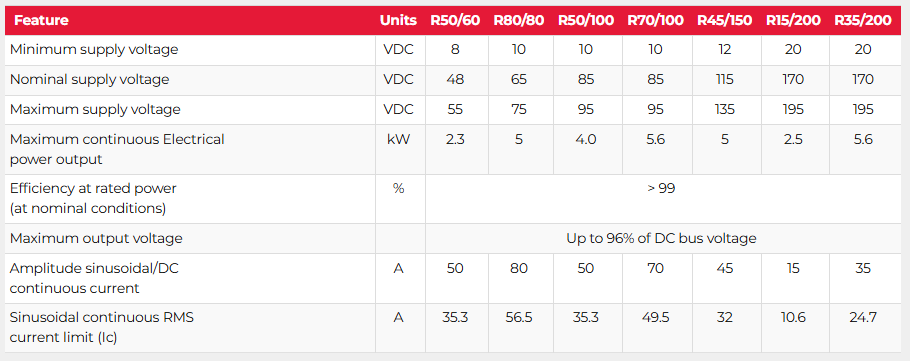

Elmo Motors Servo Drive Gold Twitter
Product Name Elmo Gold Twitter 80/80
Rated output current 80A
Voltage range 10V~95V DC
Communication method EtherCAT, CANopen, RS232
Power supply 18VDC(21W)
Size/Weight Approximately 55 x 46.7 x 15.5 (mm)/ Approximately 22g

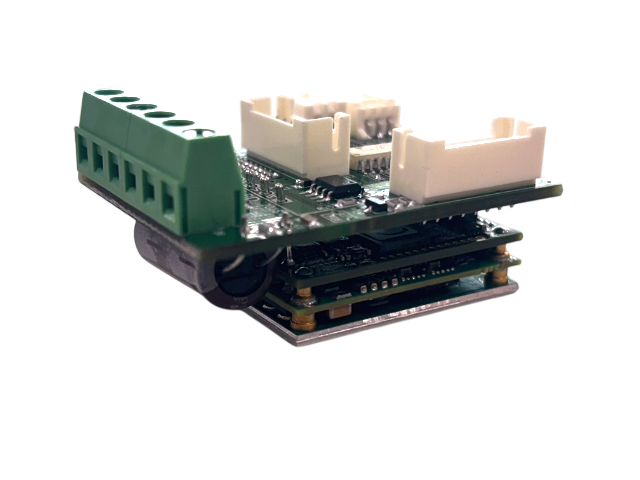

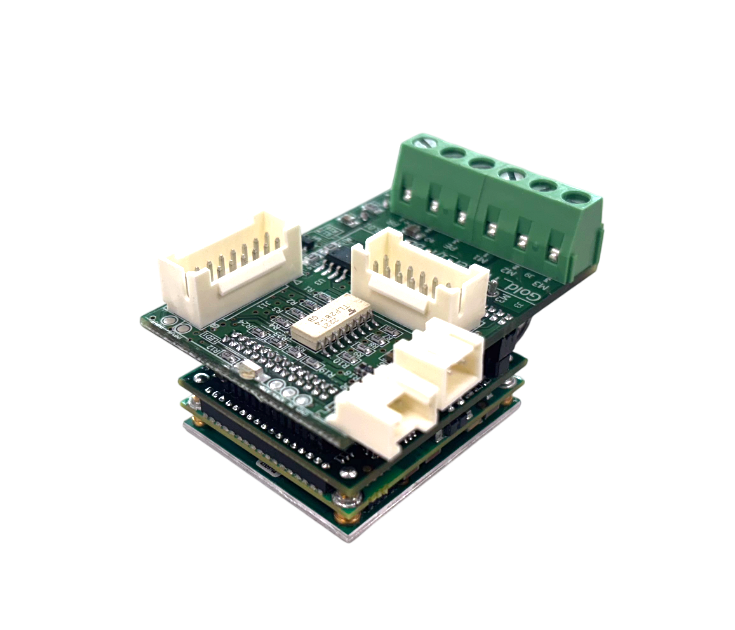

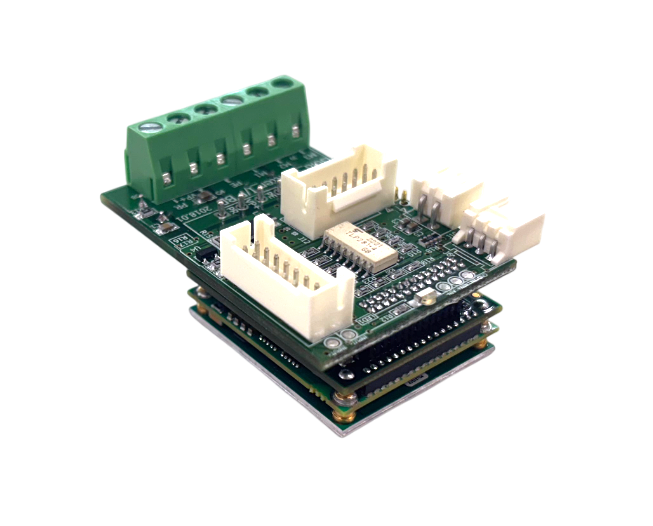

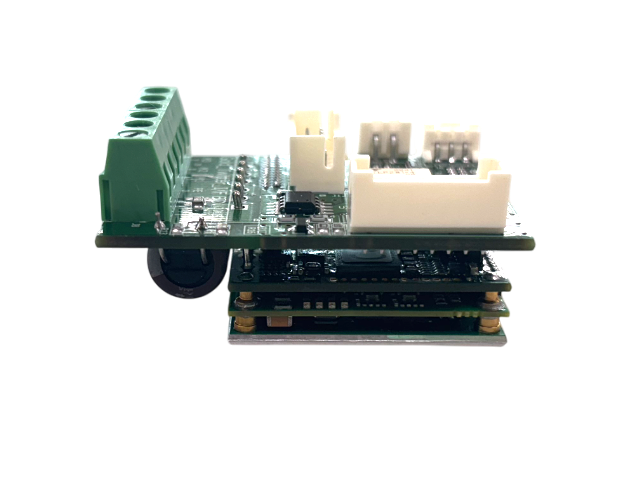

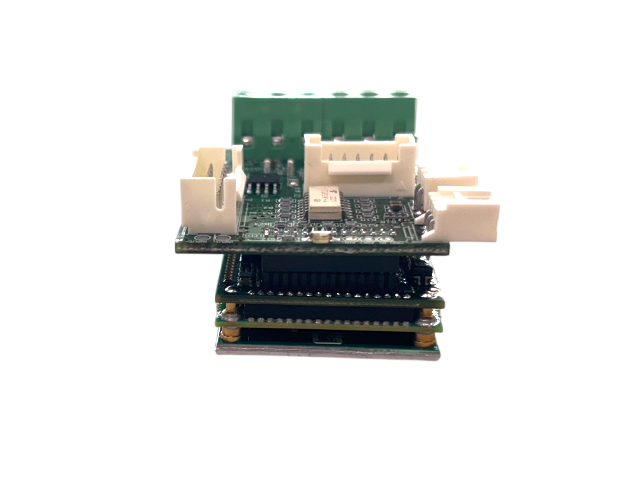

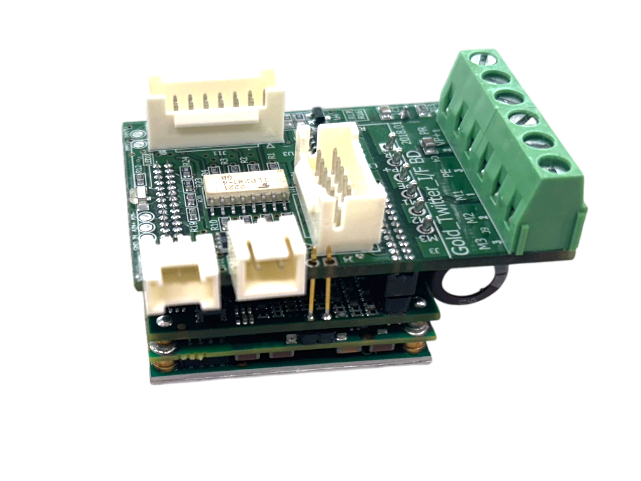

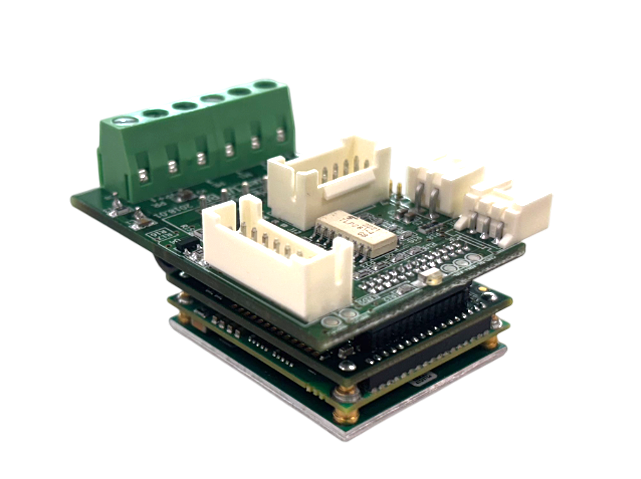

Elmo Motors Interface Board

  • Gold Twitter Servo Driver Dedicated I/F Board

  • Easy support for motor, power supply, and sensor connections

  • RS232 communication and limit switch connection possible

  • Encoder and Hall sensor input ports provided

  • Built-in LED for checking power status

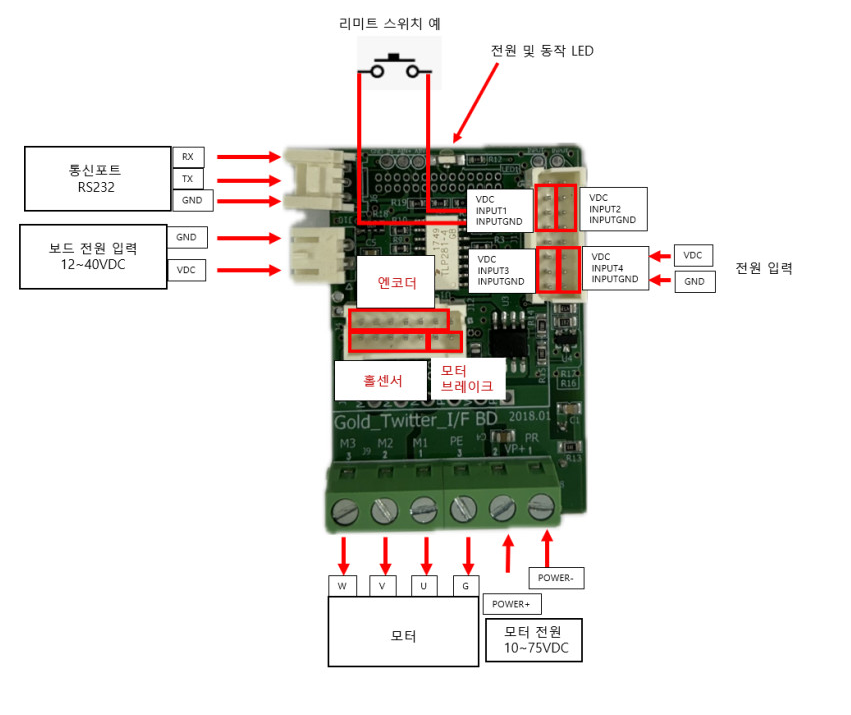

Elmo Motors Interface Board
Product Name Product Name
Input power (Board) 12~40V DC
Input power (Motor) 10~75V DC
Communication method RS232
Output port Motor power, brakes, Hall sensors, encoders
Size/Weight Approximately 50 x 40 x 20 (mm) / Approximately 17g

Features of Elmo Motors
